SBM型泵係單級、雙吸、泵殼中開、蝸殼式臥式離心泵，供吸送未處理水、清水和非飲用水以及碳氫化合物，被吸送液體最高溫度可達105℃。

   SBM型泵的流量為68～11000米³/時，揚程為7～200米，適用於自來水、灌溉、排天天操B夜夜操B站、電站、工業供水係統、消防係統、船舶工業，亦適合煉油工業中一般用途。

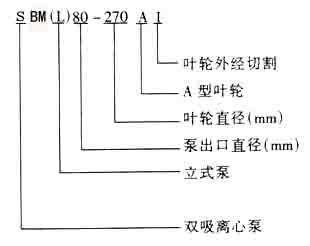

型號意義：

    SBM係列泵為單級雙吸軸向中開蝸殼式離心泵，可供臥式或立式安裝，臥式泵的驅動端可根據需要設置在泵的左側或右則，也就是同一轉子部件可用於順時針、逆時針兩個方向。

    SBM型泵的主要零部件有：泵體、泵蓋、葉輪、軸、密封體、泵體密封環、軸套、軸承部件與聯軸器部件等。

    泵殼製成水平中開，泵的吸人口與吐出口

     Series SBM pumps are single stage, double suction with horizontally split casings. They are suitable for pumping unsettled water, clean water, non-drinkable or hydrocarbon at a temperature not exceeded 105℃.

     Series SBM pumps are available for capacities of 68-11O00m³/Hr and heads of 7 -200m.they are adoptable in water works, irrigation and drainage pumping stations, power stations, industrial water supplp systems, fire fighting systems, arine applications as well as general applications in refineries, etc.

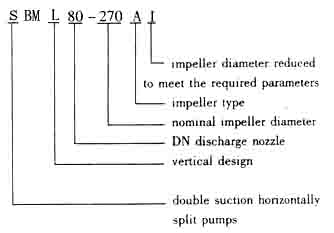

     The nomenclature of the model is based on its size and characteristic. For example:

    Series SBM pumps are single stage, axially split volute casing pump with double flow radial impeller,  for horizontal and verical installation. Drive shaft end of the horizontal pump can be optionally on the left or right side.

    The main components of SBM pump are listed as follows: lower half casing, upper half casing,impeller, shaft,wearing rings,shaft sleeves, bearing housings and couplings.

    The volute casing is splited on the horizontal center line with the suction and discharge nozzles cast integral with the lower half. The upper casing is accurately located on the lower half by the use of dowel pins. It can be removed to inspect the interior of the pump without disturbing the pipe connections or pump
